Track tested · Developed on a 2005 CTS-V
Front sway bar bushings
Front sway bar bushings for the first generation CTS-V. They drop into the factory brackets, split in two so they go on around the bar, and carry a flange at each end that keeps them from walking out of the bracket.

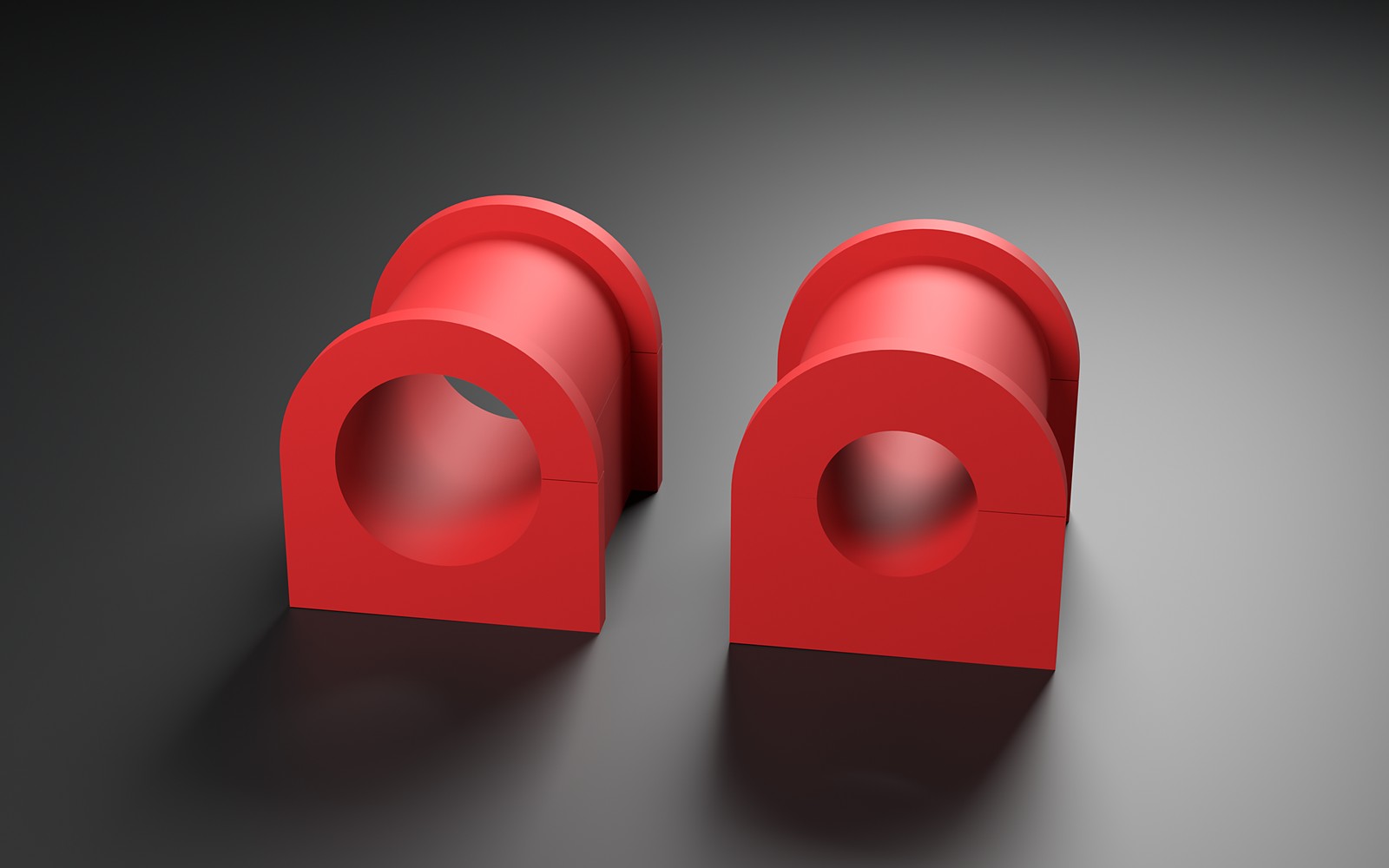

Two bore sizes. Pick the one that matches the diameter of your bar where it passes through the bushing: 35 mm or 26 mm. The images and the 3D viewer show the actual print files from the CAD. They were run on our 2005 CTS-V on track before going on the site.
Chassis2004 to 2007 Cadillac CTS-V, front sway bar, in the factory brackets

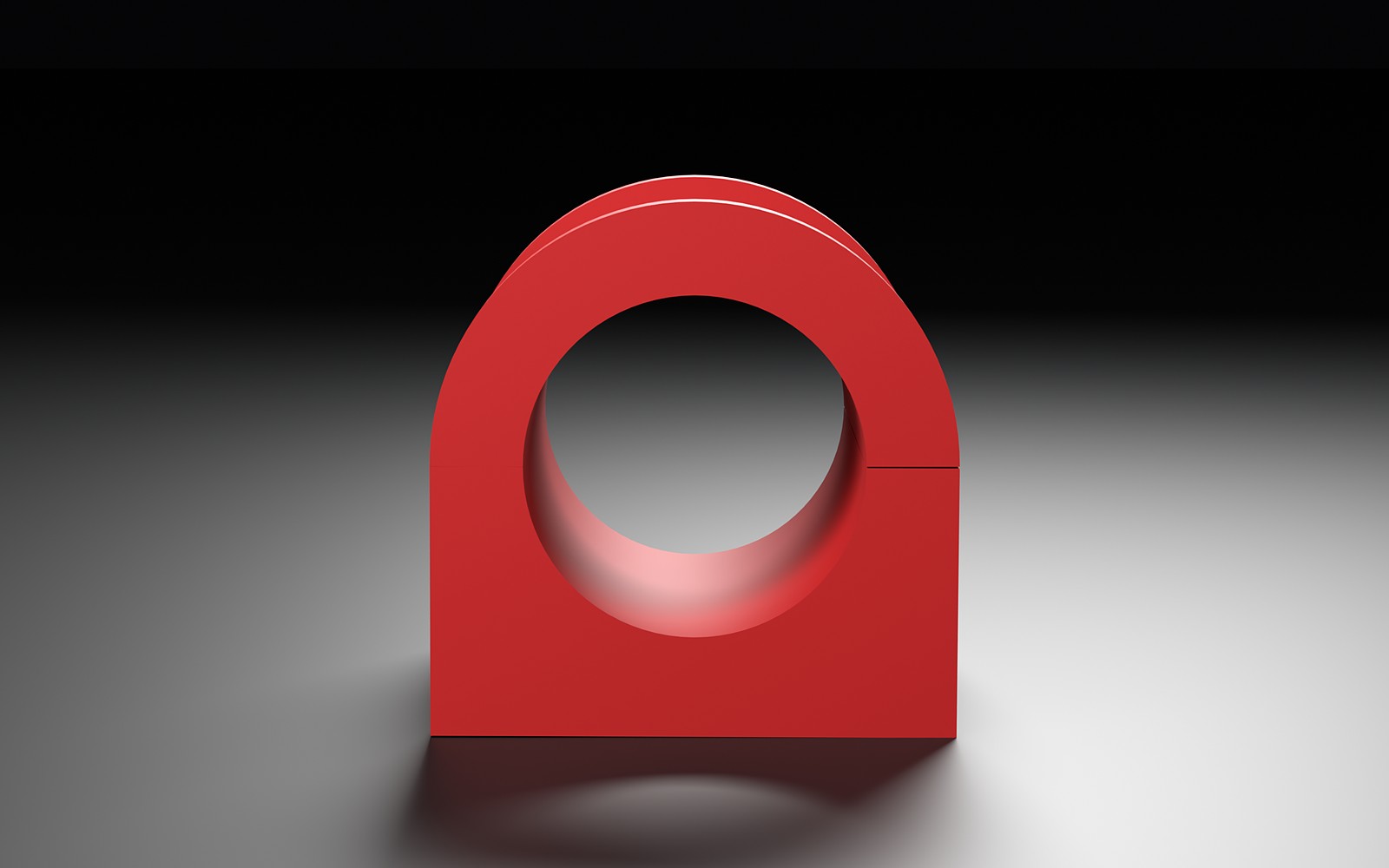

Bore35 mm, for a 35 mm bar. Measure the bar at the bushing before ordering.
Body44 mm D shape with a flat base, 60 mm long overall
Wall over the bar4.5 mm at the top of the bore

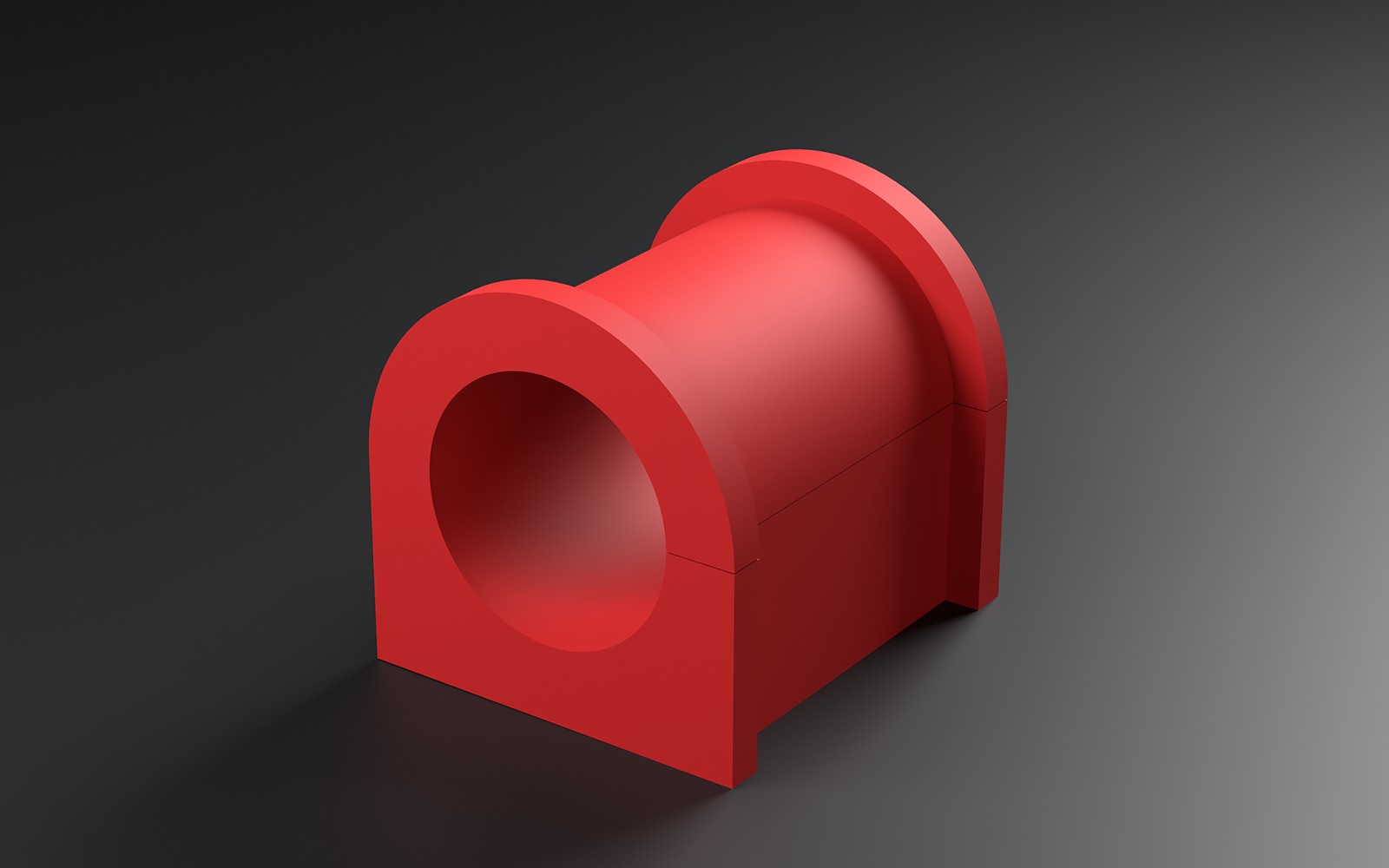

Locating flanges54 mm flanges at both ends, 50 mm apart, so the bushing cannot walk out of the bracket

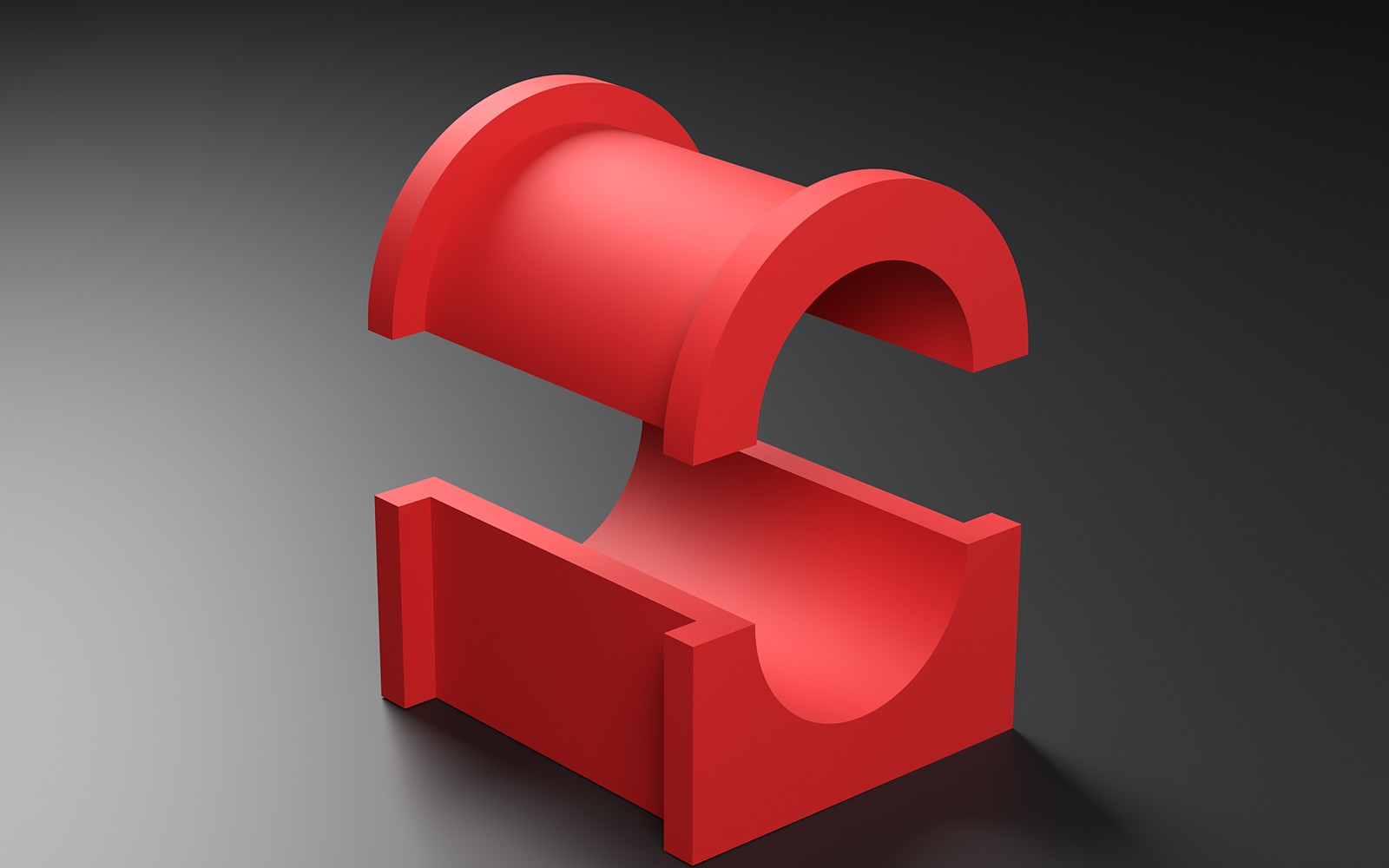

ConstructionTwo halves split on the bore centreline, so they fit around the bar without unbolting the end links
MaterialTPU 95A
Chassis2004 to 2007 Cadillac CTS-V, front sway bar, in the factory brackets

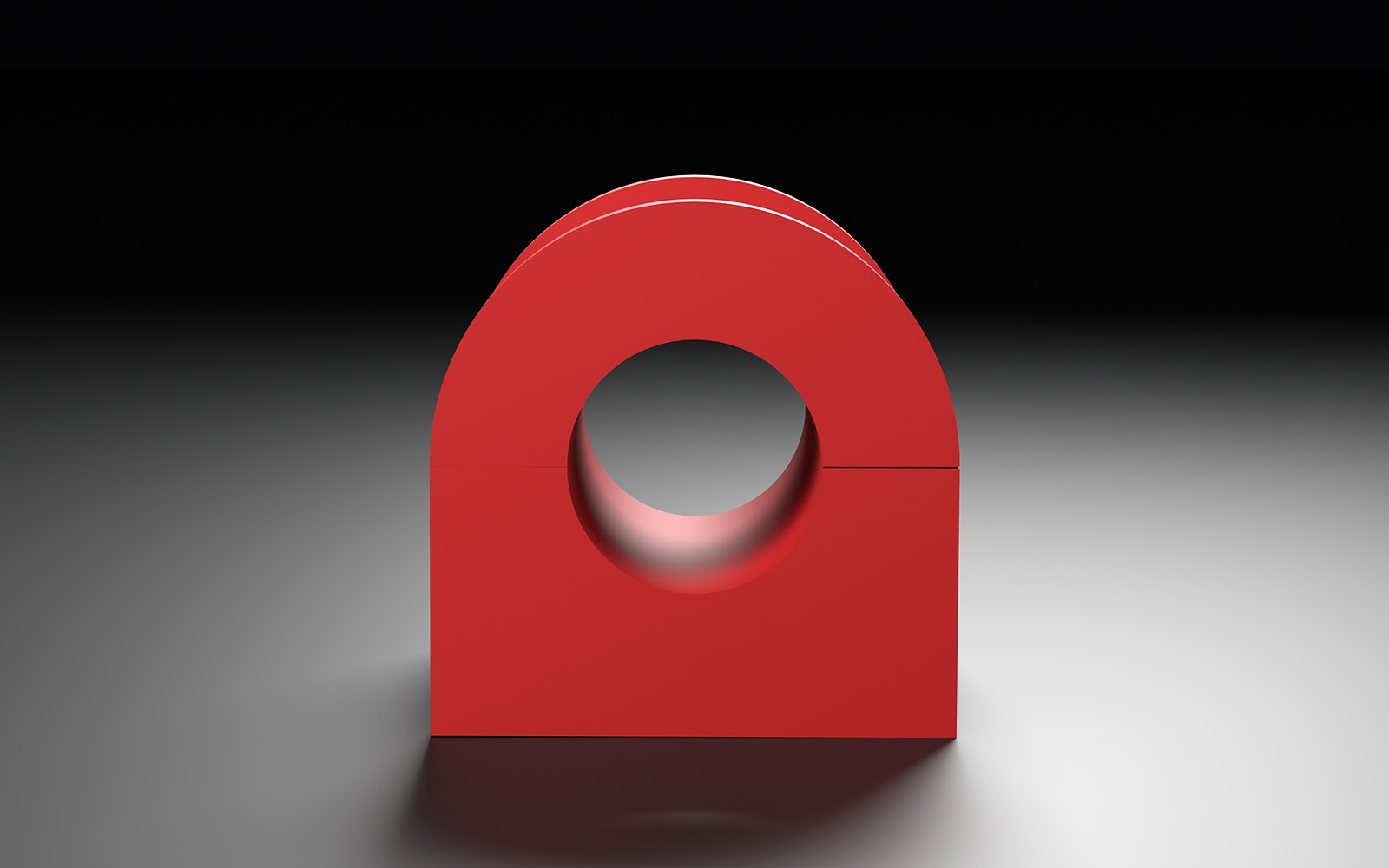

Bore26 mm, for a 26 mm bar. Measure the bar at the bushing before ordering.
Body44 mm D shape with a flat base, 60 mm long overall
Wall over the bar9.0 mm at the top of the bore

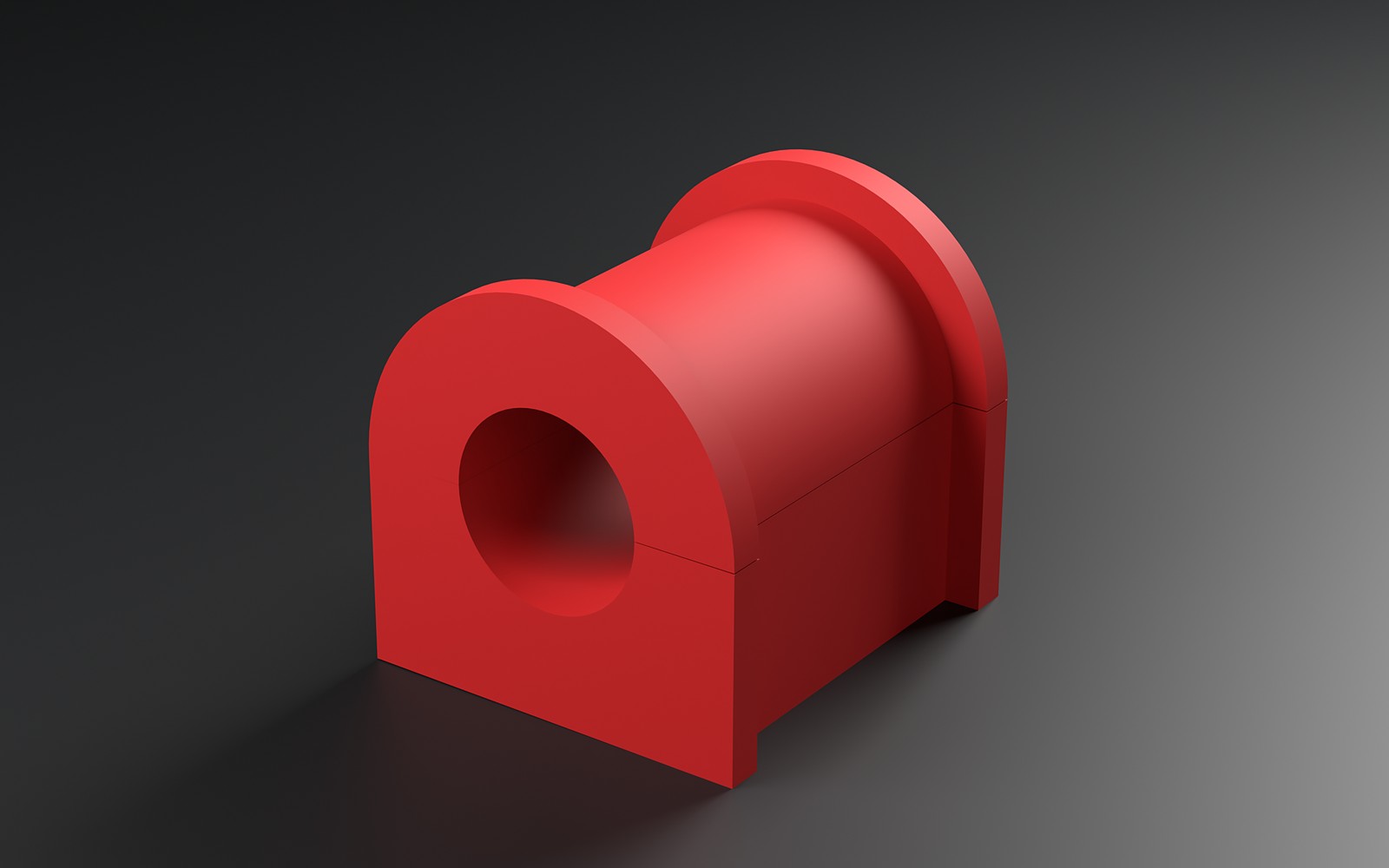

Locating flanges54 mm flanges at both ends, 50 mm apart, so the bushing cannot walk out of the bracket

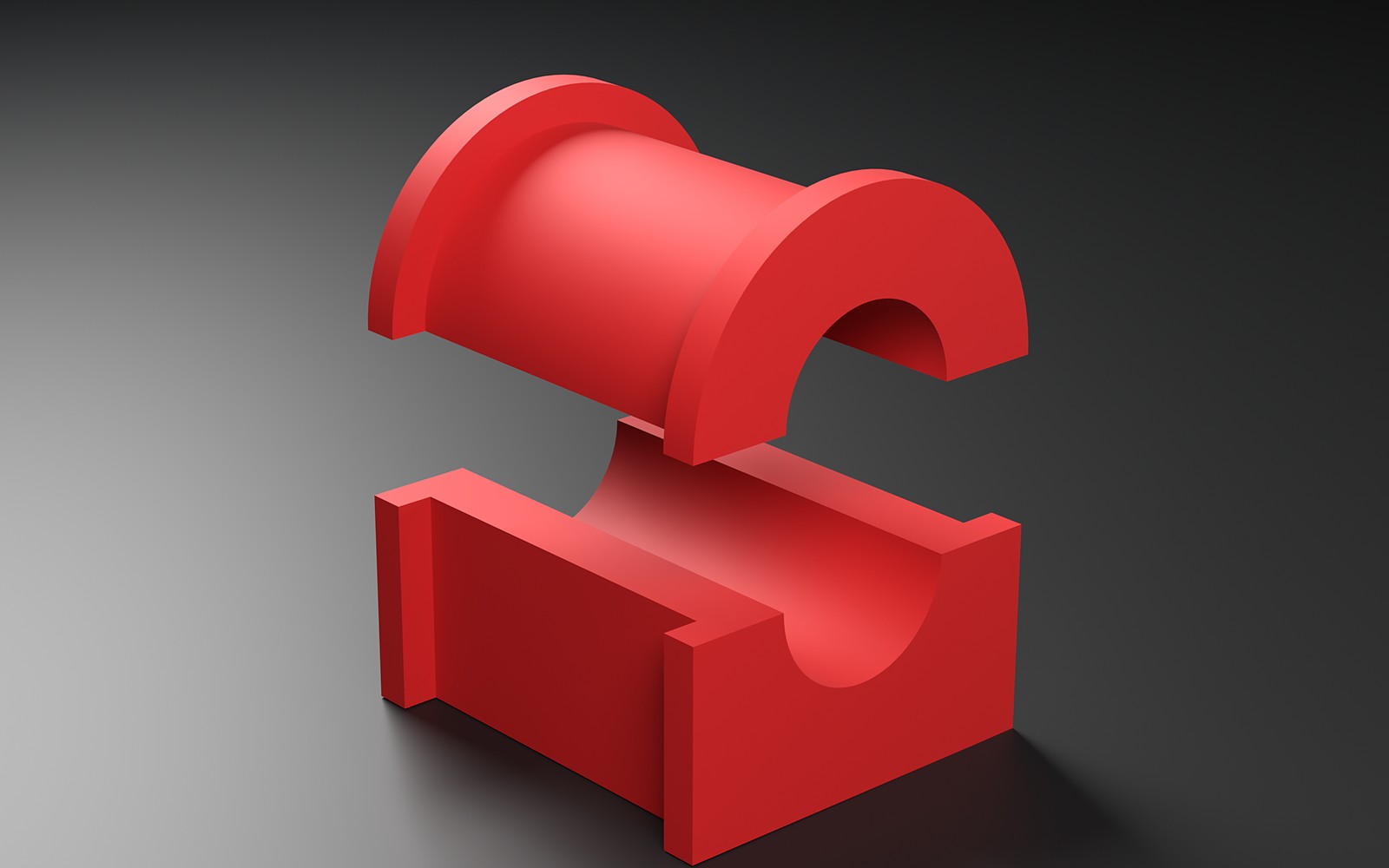

ConstructionTwo halves split on the bore centreline, so they fit around the bar without unbolting the end links
MaterialTPU 95A
