LS swap twin filter cold air intake

+9 to 14hpSimulated over a 4 in pipe and cone, 6.2 L LS3 at 7,000 rpm, 100 to 60 mph. Colder air from behind the grille makes the power. See the numbers

A scan fit cold air intake for LS swapped E36 chassis. It runs from the throttle body over the core support and splits into two legs, one filter behind each kidney grille, so the engine breathes cold air instead of engine bay heat.

Every surface was designed against a 3D scan of the engine bay at true scale, so it clears the radiator, latch and core support without cutting. The images are renders of the actual print files on that scan. The hex honeycomb on top is structural, not decoration: the ribs stiffen the wide plenum walls against vibration, heat and intake vacuum while adding very little weight.

ChassisBMW E36 with GM LS swap
Throttle body90 to 92 mm class, sized against the LS3's 90 mm bore
FiltersTwo, one behind each kidney grille opening

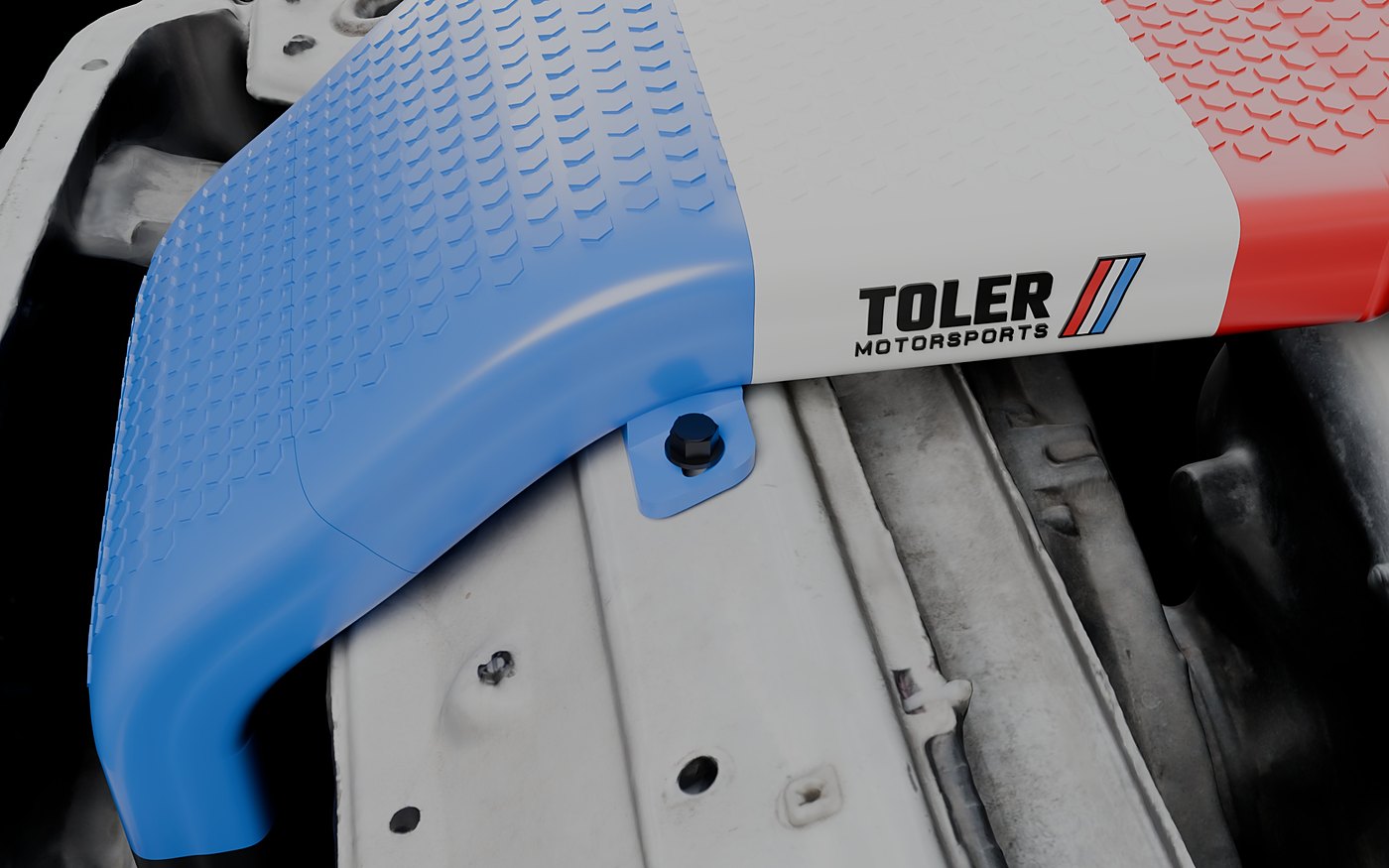

MountingTwo brackets into the core support clip holes

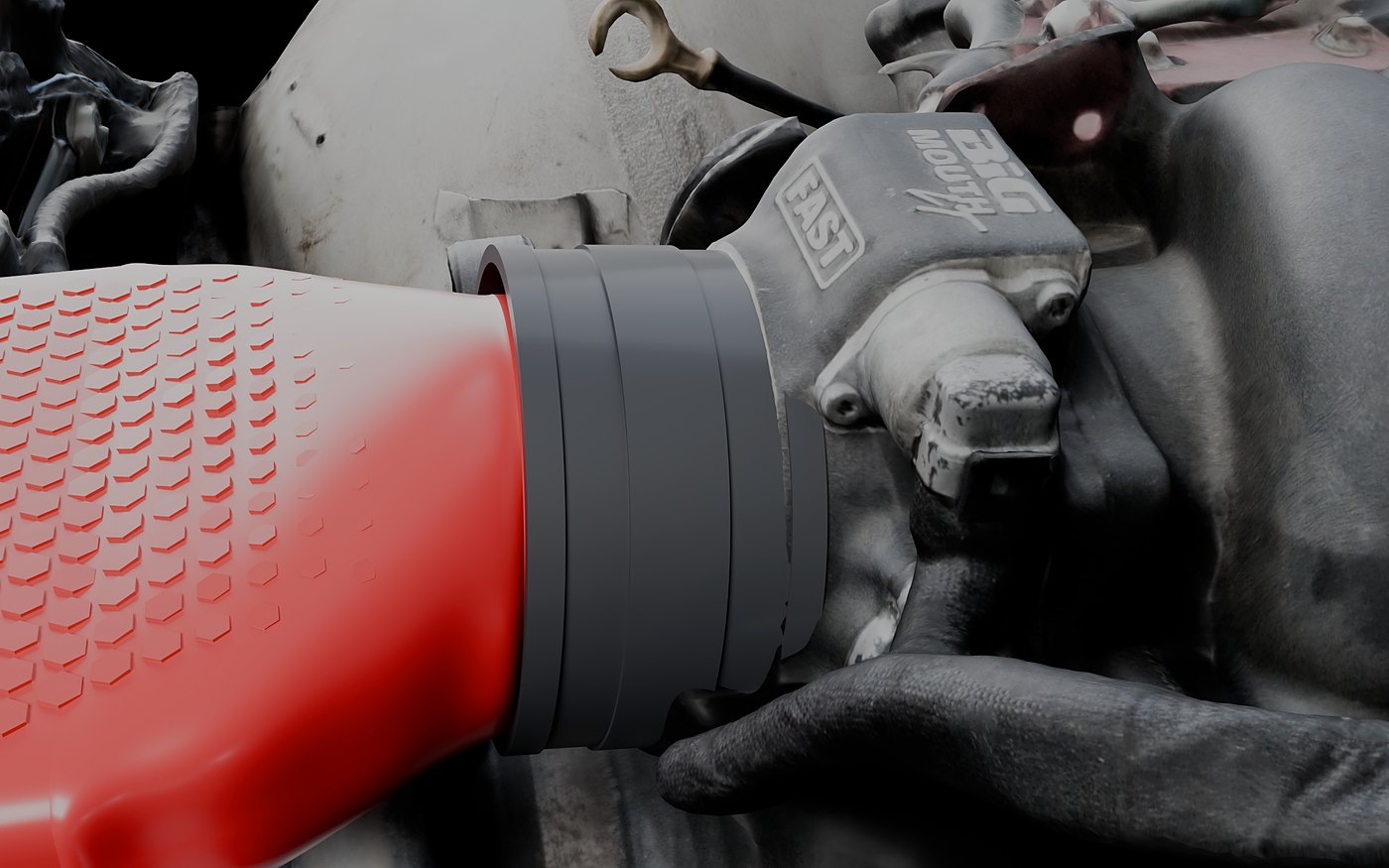

JointsThrottle body joint is serviceable and sealed by a double gasket. The leg joint bonds with a hidden lap.
MAFSlot style MAF port

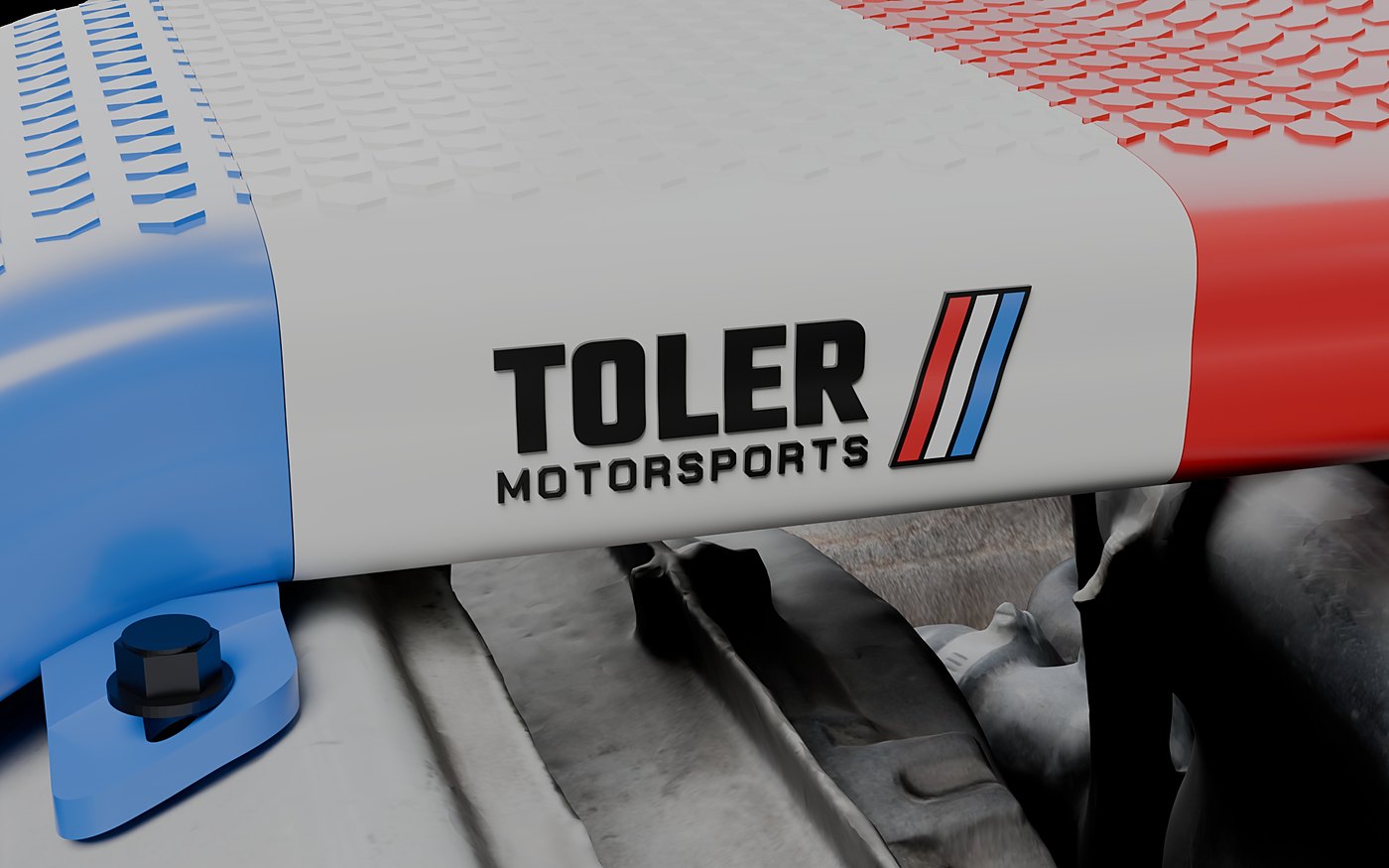

StructureHex rib honeycomb on the top surfaces, one pattern lined up across every joint
MaterialHeat and UV resistant engineering plastic, flexible gaskets
Interactive

Spin it. Take it apart.

The actual CAD parts in your browser. Drag to rotate, and pull the sections apart to see how they join.

Loading model
Drag to rotate
In the box

Everything to install it.

The duct ships as three printed sections. The throttle body joint stays serviceable; the leg joint bonds with the adhesive included. Filters are not included; the 3D model shows the two K&N RU 1620 filters it is designed around (2.875 in flange, 4 in by 6 in).

Engineering

The numbers behind it.

+14 hpSimulated gain at 7,000 rpm and 60 mph over a 4 in pipe and cone on a 6.2 L LS3, still +9 hp at 100 mph. The air arrives 25 to 43 °F colder.
+15%Smallest flow area, 7,306 mm² across the two 68.2 mm filter ring bores, against the 6,362 mm² of the LS3's 90 mm throttle bore. The duct is never the restriction.
44 m/sPeak air speed in the duct at about 676 cfm, a 6.2 L LS3 at 6,500 rpm. The 90 mm throttle bore sees 50 m/s.
2 sealsDouble gasket on the serviceable joint, plus two screws to hold it together.
0.78 kgPrinted weight of the three sections and two brackets, calculated from the CAD volume.
2.2xBending stiffness of the plenum top with the hex ribs, against the same wall without them (2.1 to 2.4x across 71 section cuts of the print files). A plain wall would need about 31% more plastic to match; the ribs add 18%.

For off road and competition use only. Final specifications are confirmed after track validation.

Simulated at 7,000 rpm

Twin ram air against a 4 in pipe and cone.

A 6.2 L LS3 at 7,000 rpm pulls about 766 cfm through its 90 mm throttle body. We modeled this intake against a common setup: a 4 in aluminum pipe with one 90 degree bend and a cone filter sitting in the engine bay. Geometry for this intake comes from sections of the actual CAD; the throttle body and coupler are the same for both.

SpeedAir temp, 4 in pipeAir temp, twin ram airRam pressure gainRestriction, pipe / twinPower vs 4 in pipe
60 mph122 °F79 °F+213 Pa876 / 1,695 Pa+3.3%, about 14 hp
80 mph113 °F79 °F+379 Pa867 / 1,695 Pa+2.7%, about 11 hp
100 mph104 °F79 °F+592 Pa858 / 1,695 Pa+2.1%, about 9 hp
120 mph99 °F79 °F+852 Pa852 / 1,695 Pa+1.8%, about 8 hp
The whole engine bay with the twin filter intake, on the true scale scan
The full route

From the throttle body, over the core support, and split into two filters behind the grille.

Order or ask a question.

The first batch is small. Send your details and we will confirm fit before you order.
