Cowl slot block off plate

A flat block off plate for the slot in the E36 cowl ahead of the windshield. It screws to the four factory square clip holes and its bottom edge slides under the lip strip, like a cut aluminum plate but with a finished white hex face and a small Toler Motorsports badge in the corner.

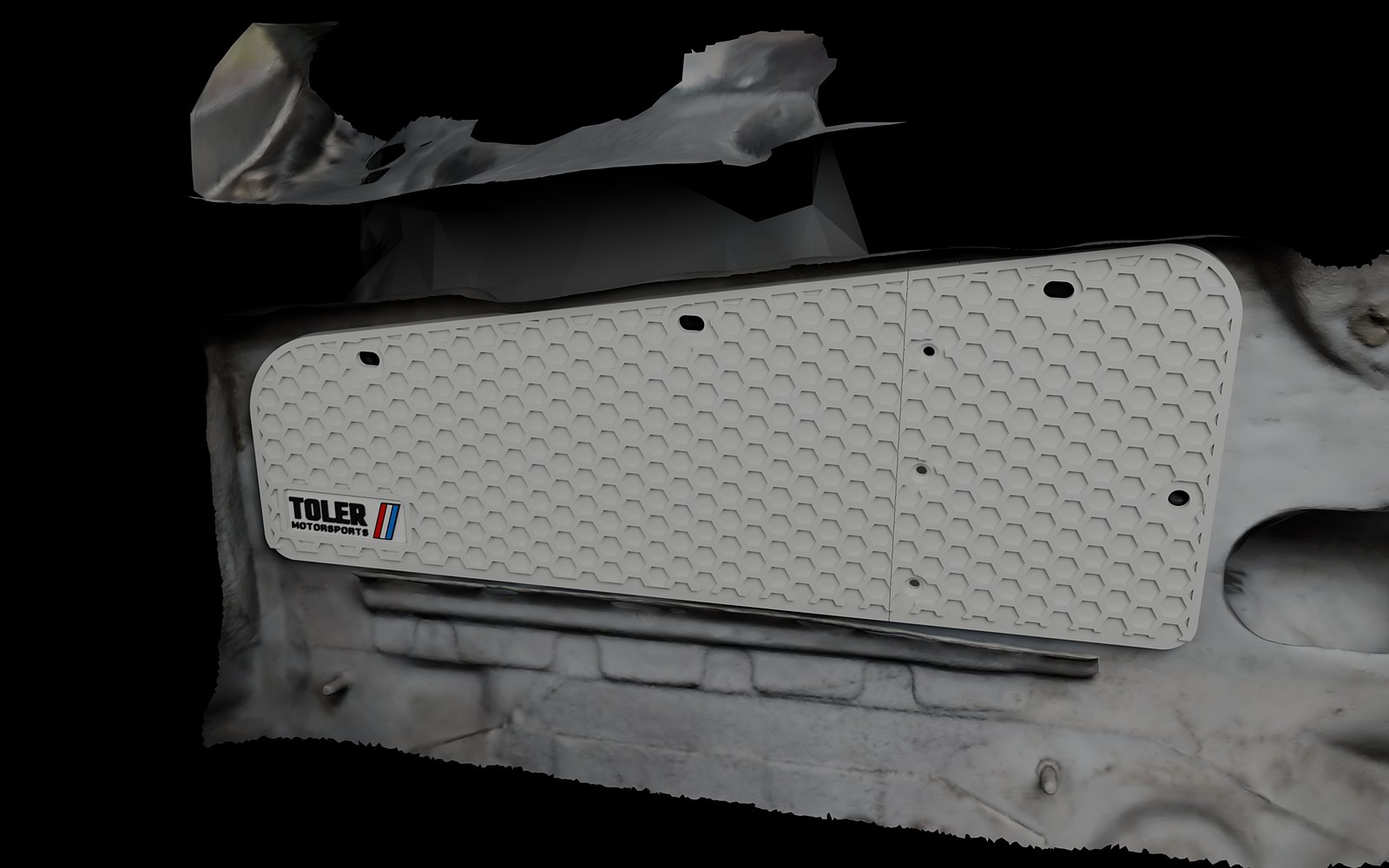

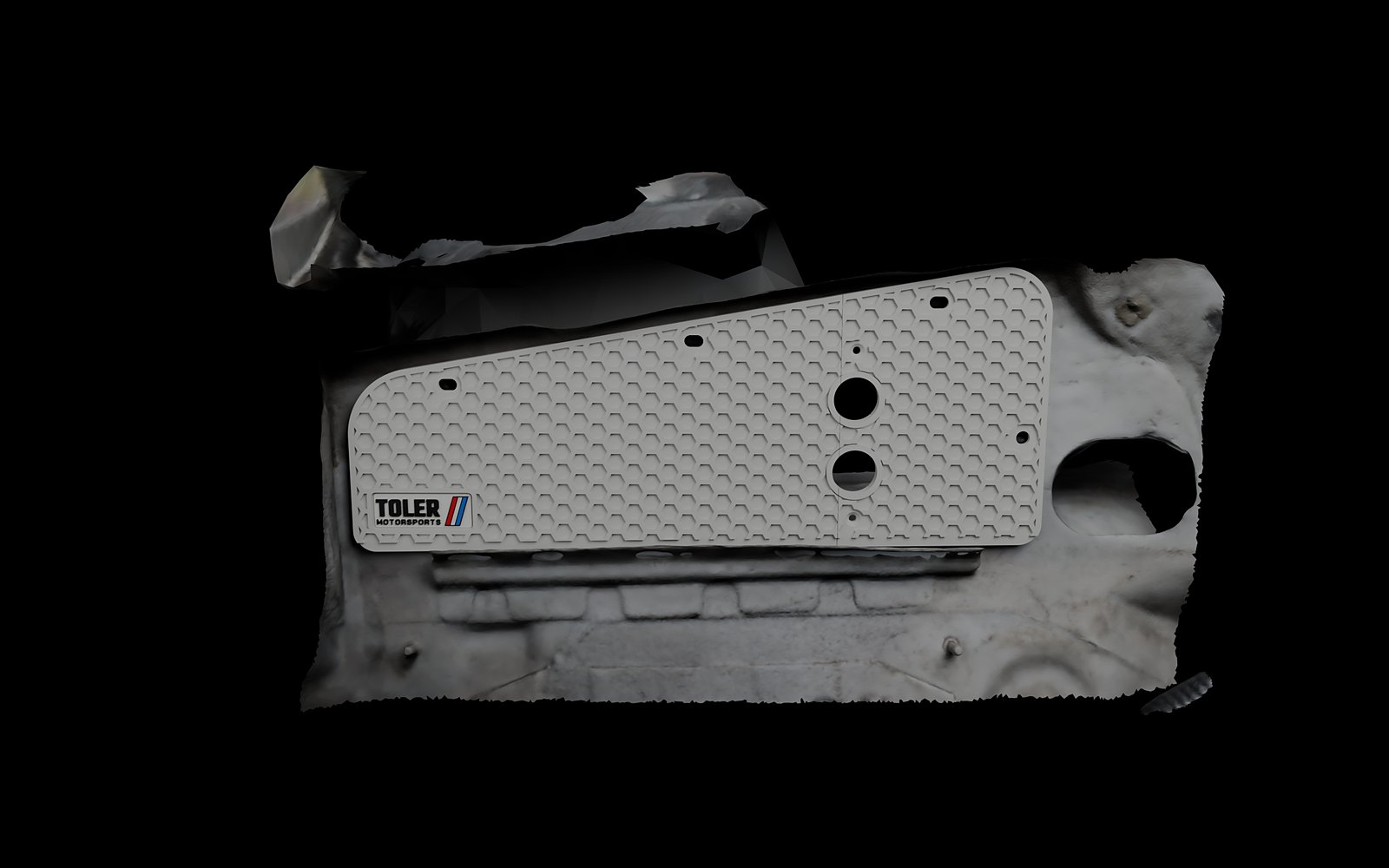

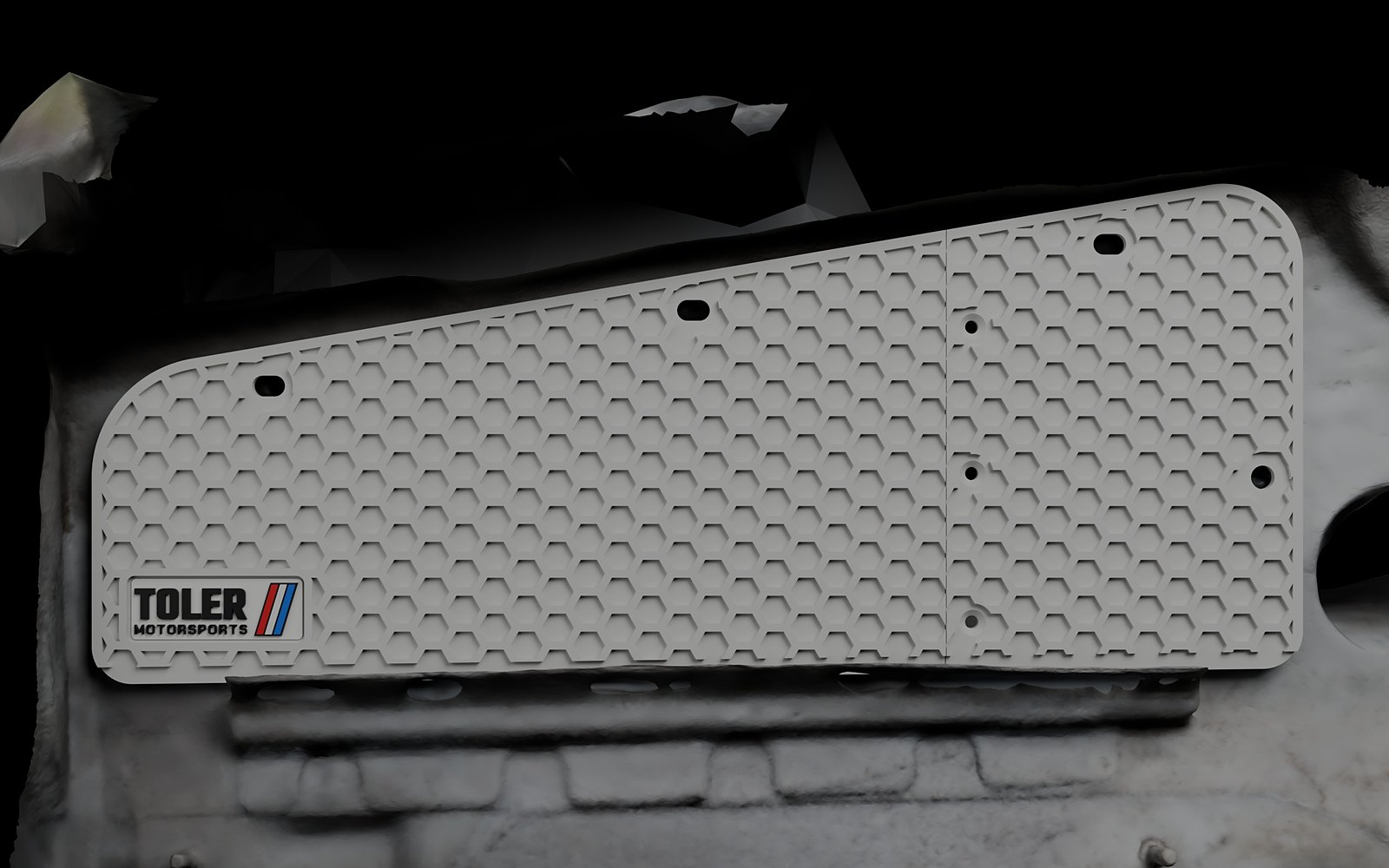

Two options. With loom holes, two holes sit on the joint between the halves, so the plate closes around the wiring of a PCM mounted in the slot with everything still plugged in, and the loose wires stay hidden behind the plate. With no holes, it closes the slot completely. The outline is straight edges and radii, sized from a 3D scan of the car with the screw positions and the lip measured on it.

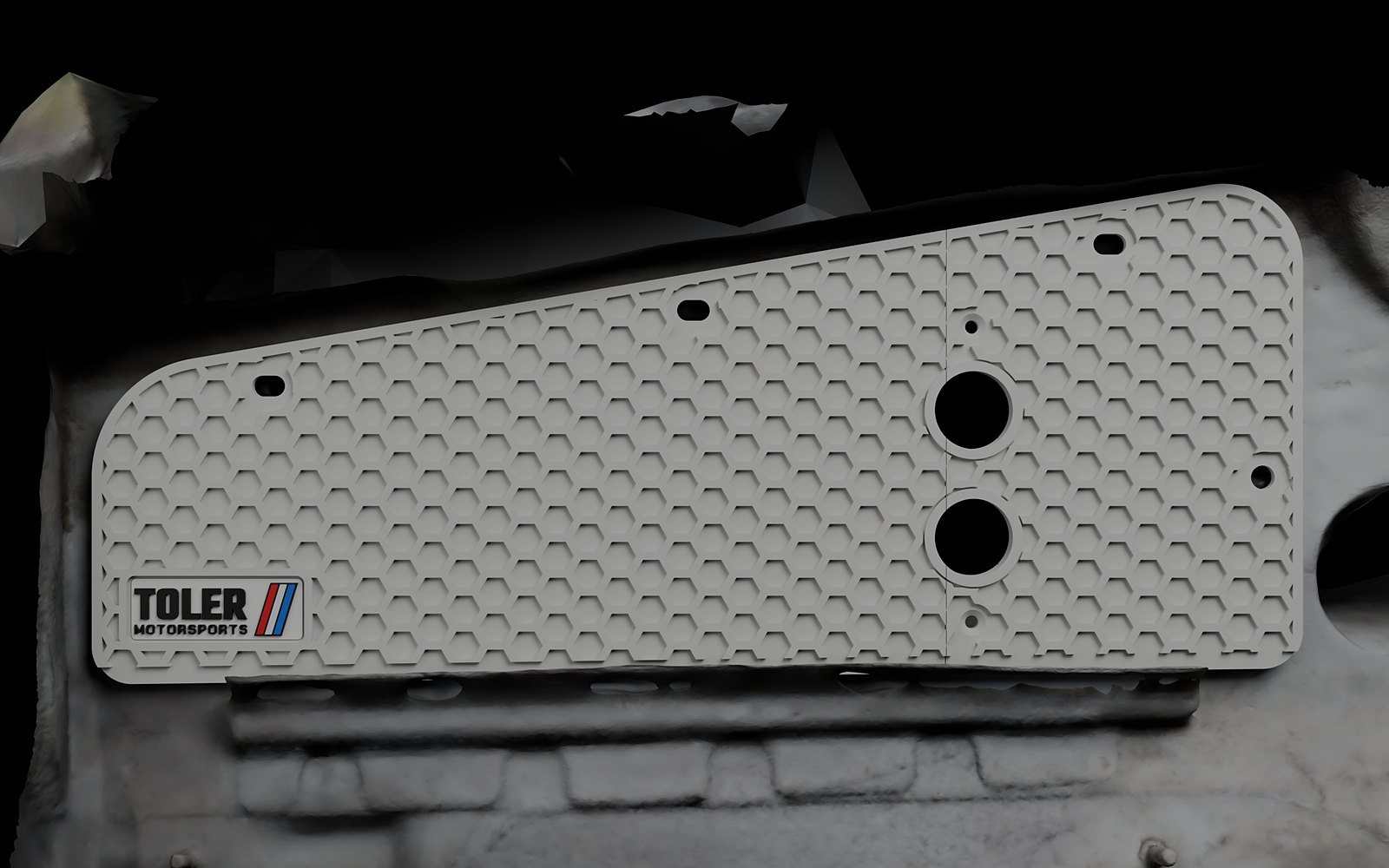

Block off plate with two loom holes in the E36 cowl slot, front view — With loom holes

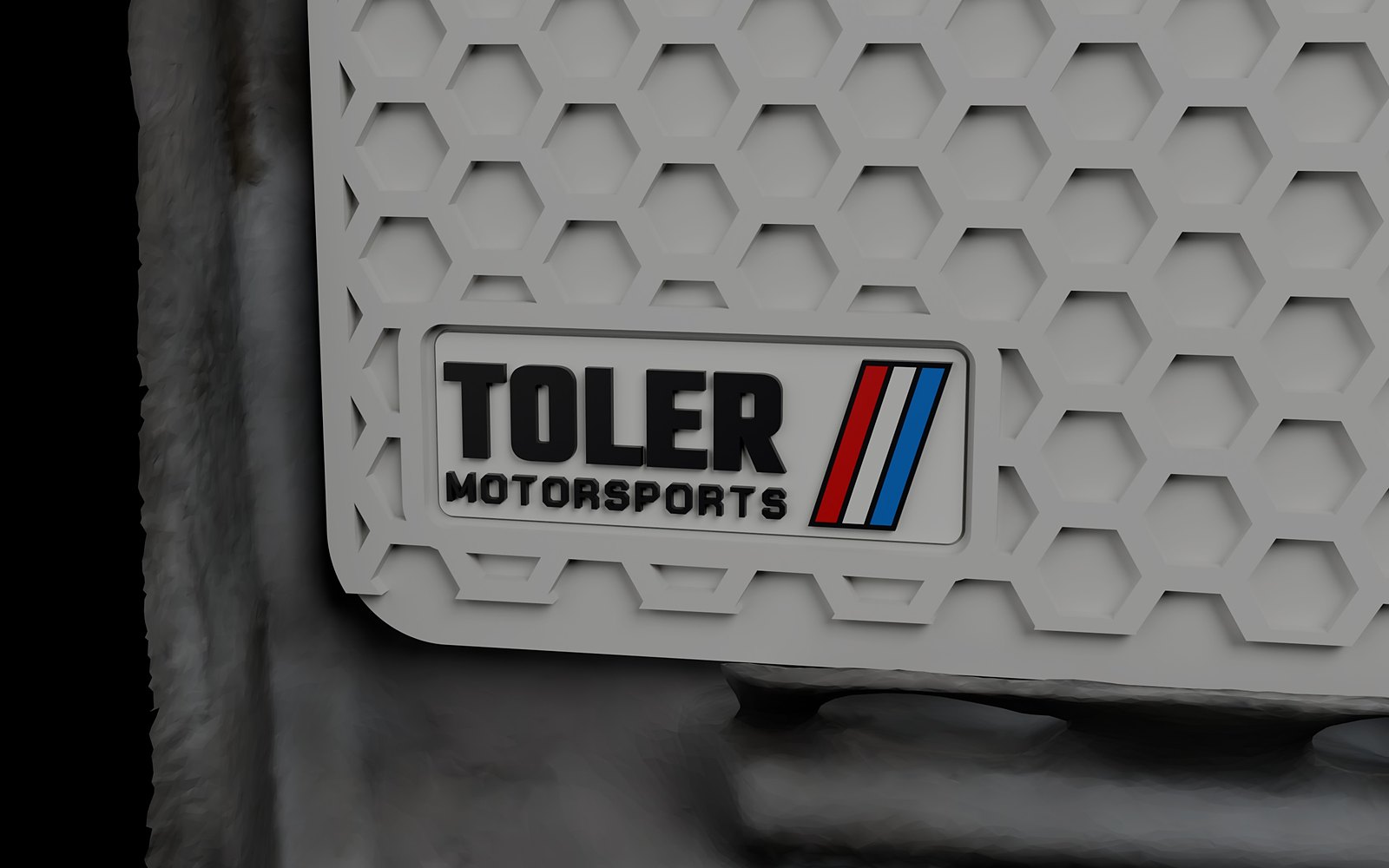

Toler Motorsports badge in the lower left corner of the hex face — Badge in the corner

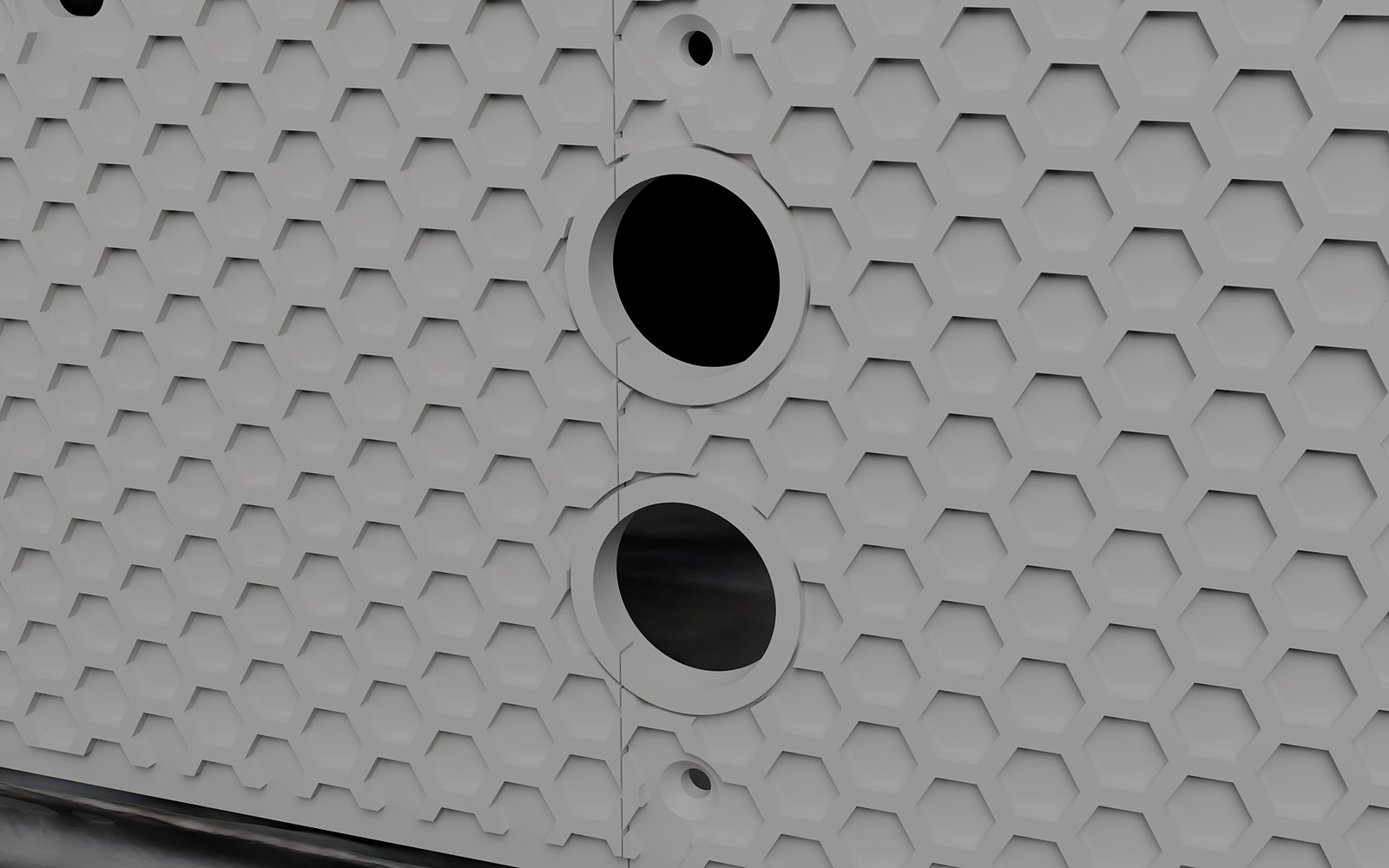

Two loom holes split on the lap joint between the plate halves — Loom holes on the joint

ChassisBMW E36, 1992 to 1999, the slot in the cowl ahead of the windshield

MountingFour factory square clip holes with anchor clips. Three are slotted to take up small differences between cars.

Bottom edgeStraight, and slides into the channel under the lip strip so no edge shows

ConstructionFlat 4 mm plate in two printed halves joined by a hidden lap joint and M3 screws. No glue.

WiringTwo 19.6 mm holes on the joint, a snug fit on two 3/4 in looms from a PCM in the slot. The halves close around the looms, so nothing gets unplugged.

BrandingSmall Toler Motorsports badge, 43 by 15 mm, in the lower left corner

SurfaceHex rib face with a raised border

MaterialHeat and UV resistant engineering plastic in white, to match a white bay

In the box

Everything to install it.

Ships as two printed halves and the colour badge. It uses the car's four square clip holes; anchor clips and screws for those holes are not included.

LLeft half with plaque pocket
RRight half, closes around the looms
PToler Motorsports badge
+Two M3 countersunk screws and lock nuts for the joint
+Mounting tape for the badge
+Install guide

Engineering

The numbers behind it.

0.2 mmHow far the four clip holes are from one flat plane on the scan, so a flat plate sits evenly on all four.

303 x 125 mmPlate size, covering the 218 cm² slot with about a 3/8 in edge past the screws.

2 x 19.6 mmLoom holes on the loom hole option, a snug fit on two 3/4 in looms.

146 gPrinted weight of the two halves with loom holes. Without holes it is 149 g.

2 halvesEach half fits a 256 mm print bed, so the full 303 mm plate prints on a common printer.

Dimensions come from the print files and a true scale 3D scan of the car. For off road and competition use only.
